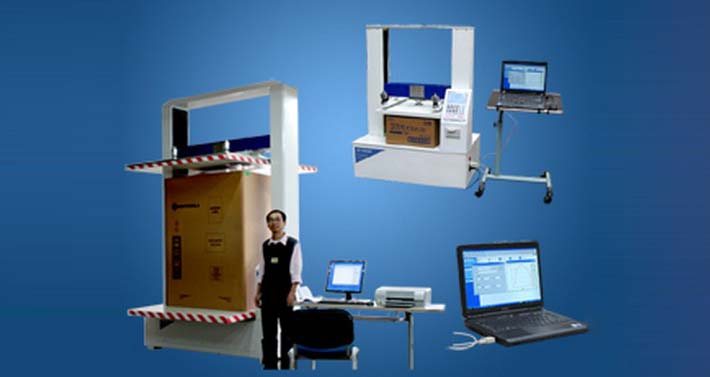

Box Compression Tester as quality control device

Features of box compression tester for quality control device

Box compression tester with multi-function and high precision is designed to test the compressive strength of large size corrugated box, or packages and containers made of other material with a compressive strength smaller than 50kN.

With advanced mechanical structure of a pair of threaded shafts & guide pillars and imported motor for control, the testing machine has the salient features like good parallelism, reliable measure precision and high return speed (250 mm/min).
The tester is capable of various functions for all parameters in standards, such as parametric test, display, memory, statistics and print function; data processing function to gain the statistical result of all parameters directly; and automatic reset and fault diagnosis function and easy operation.

Specifications of box compression tester for quality control device

Power		AC 380V/50Hz, 5A
Measuring range		0 - 50 KN
Indication error		± 1%
Plate size		1,200 x 1,200 mm / 1,500 x 1,500 mm
Max stroke		1,200 or 1,500 mm
Pressing speed		0 mm/min
Return velocity	max	50 mm/min
Display		LCD display module, show pressure curve real-time
Printer		direct thermal printer, high speed while noiseless
Communication output		standard RS-232 interface
