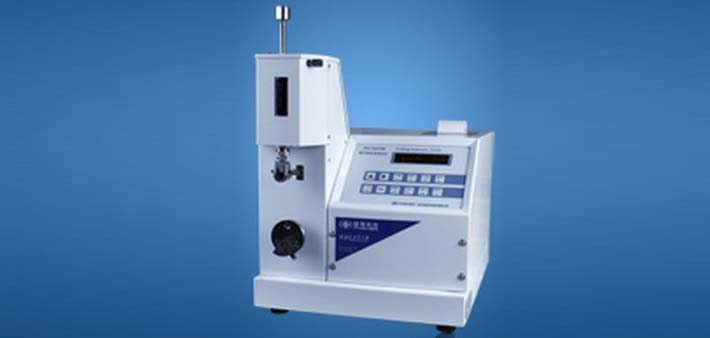

Folding Endurance Tester of quality control device
Features of folding endurance tester for quality control device
- Folding Endurance Tester is a new type testing apparatus to test paper’s Folding Endurance, which is designed to be in accordance with related national standard GB/T 2679.5-1995, paper and board - determination of folding endurance.
- It has various functions, such as, parameter testing, parametric transformation, parameter regulation, parameter display, parameter memory and parameter print. The tester has data processing function which can directly output result of statistical data with convenient operation, easy regulation and stable performance. The main functions are shown as following: compact structure, light weight, abundant functions, horizontal type and stable performance, so the tester is suitable for different paper and boards.
Specifications of folding endurance tester for quality control device
Measuring range | 0 ~ 99,999 s |
Folding angle | 135° ± 20° |
Folding frequency | 175 ± 10 times/min. |
Folding head width | 9 ± 1 mm |
Folding radius | 0.38 ± 0.02 mm |
The spring tension | 4.91 - 14.72 N (when every 9.81N tension is added, the compression of spring is 17 mm reduced at least.) |
The clearances between folding ports | 0.25, 0.50, 0.75 and 1.00 mm (four ranges) |
