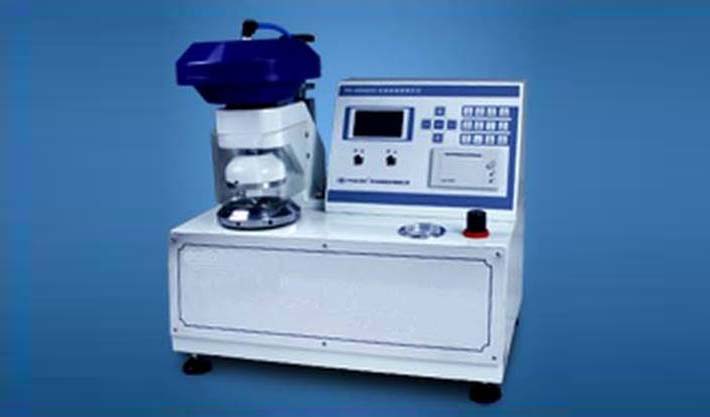

Bursting strength tester of quality control device
Features of Bursting Strength Tester of quality control device
Bursting Strength Tester is a new type testing apparatus to test the bursting strength of corrugated boards, which is designed to be in accordance with related national standards and on the principle of modern mechanical design concept and design criterion of human-machine engineering.
Specifications of Bursting Strength Tester of quality control device
Power | AC220V ± 10% / 50Hz, 2A |
Measuring range | 300 - 5,500 kPa |
Compression rate | 170 ± 15 ml/min |
Resolution | 0.1 kPa |
Accuracy | ≥ 99.5 % |
Diaphragm size | 2.5 ± 0.2 mm (bulge height) |
27.8 mm (bulge diameter) | |
Diaphragm resistance | When the bulge height is 10mm, the pressure is 170 - 220 kpa |
When the bulge height is 18mm, the pressure is 250-350 kpa | |
Upper clamp | 31.5 ± 0.05 mm |
Lower clamp | 31.5 ± 0.05 mm |
Hydraulic transducer | < 6,000 kpa |
Clamp pressure | ≥ 690 kpa |
