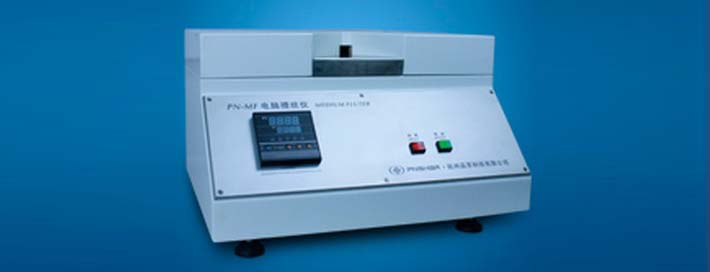

Medium fluter of quality control device

Medium fluter of quality control device

Features of medium fluter of quality control device

This apparatus flutes the paper samples by means of two fluting rolls. Afterwards, the samples are tested in the crush tester for evaluation of the corrugating medium test and corrugated crush test).

Specifications of medium fluter of quality control device

Radius of teeth at peak 1.50 ± 0.1 mm
Radius of teeth at base 2.00 ± 0.1 mm
Depth of teeth 4.75 ± 0.05 mm
Standard equipment  prepared for “A” Flute
Working speed 4.5 r/min
Temperature resolution 1 ℃
Working temperature adjustable (room temperature to 200℃)
Working pressure adjustable in (49-108) N
Standard working temperature 175 ℃
Spring tension 100 N
Power supply AC220V, 50Hz
